• This is a measure used pending definitive scope treatment by GI.

Inubate patient then position the head of the bed at 45°.

Check balloons for leakage.

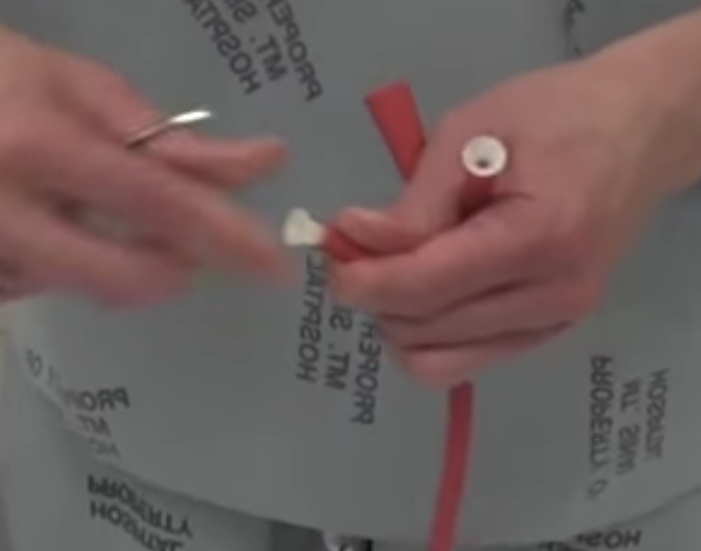

• Remove 1 plug each of gastric and esophageal balloon ports with Kelly clamps.

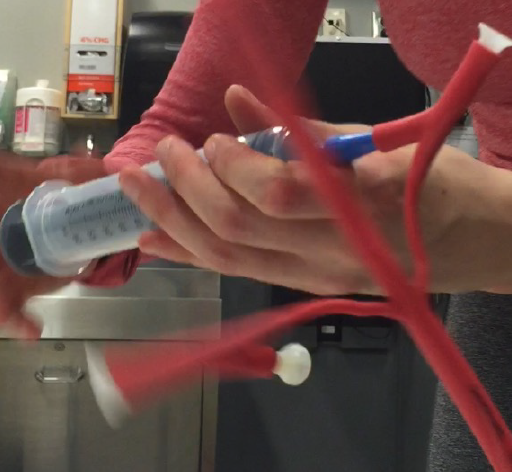

• Connect Christmas Tree Adapter to the gastric balloon port.

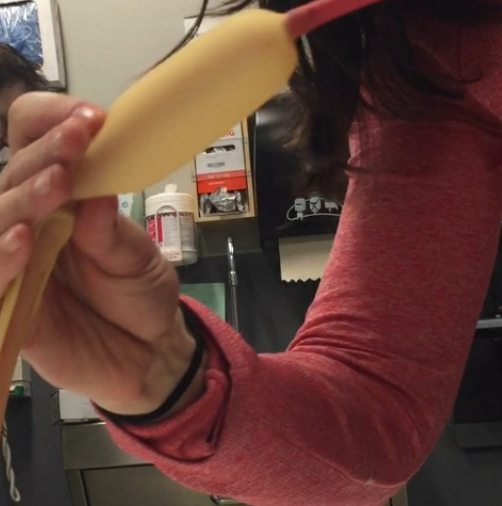

• Test by deflating and inflating the balloon with a 60cc syringe in gastric port. Fully deflate when satisfied there are no leaks. Then clamp.

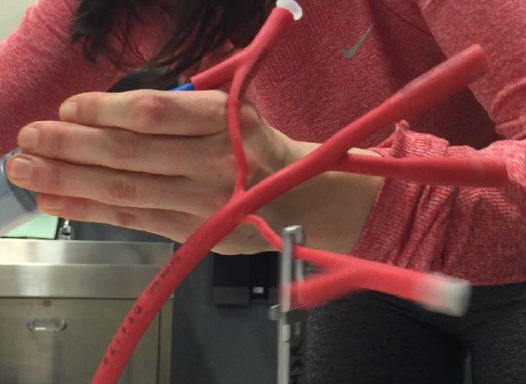

• Repeat with esophageal balloon port. Clamp.


Insert.

• Lubricate balloons.

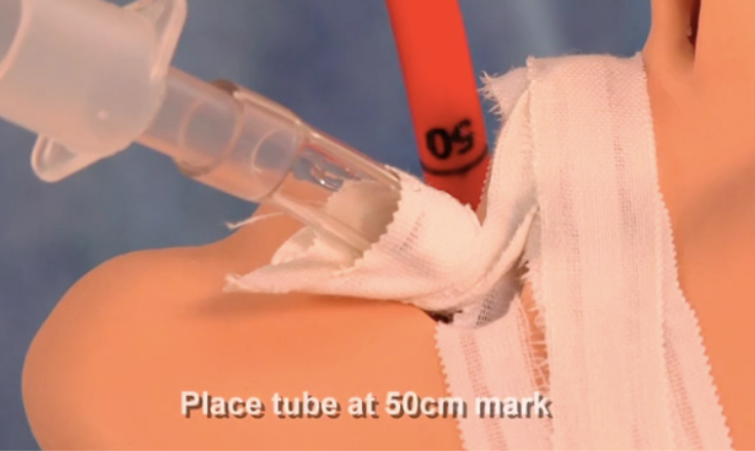

• Insert through the mouth until tube sits at the 50cm mark.

• Release clamp of gastric balloon. Inflate gastric balloon with 50cc of air. Reclamp.

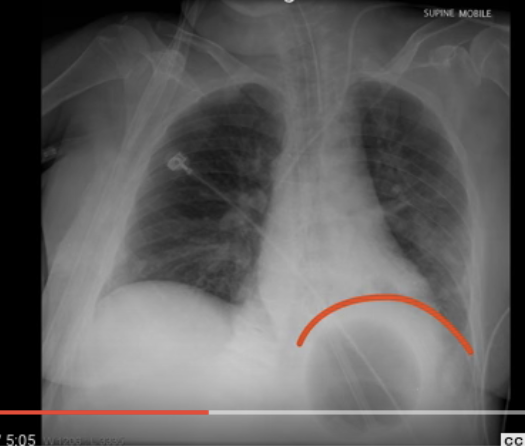

• Obtain CXR to confirm placement below diaphragm.

• If confirmed to be in stomach: inflate another 200-250cc in gastric ballon (up to 500cc for Minnesota).

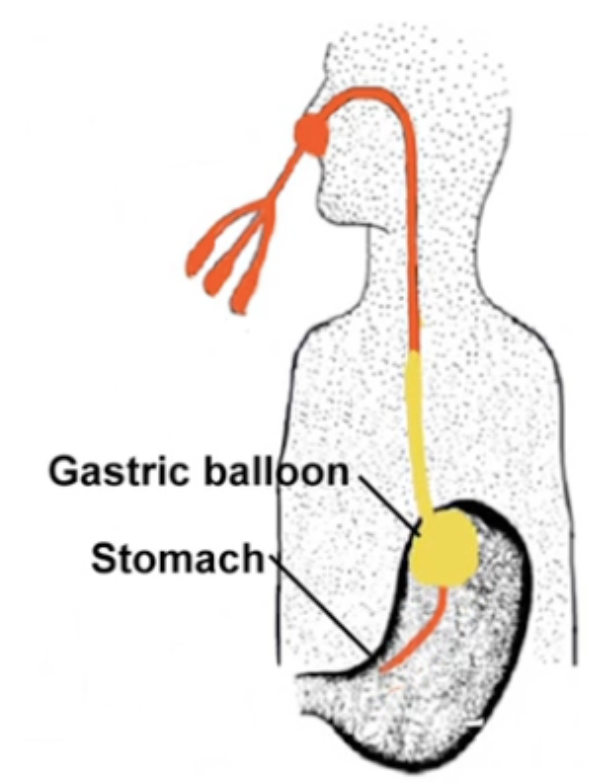

• Pull balloon back until it abuts the GE junction.

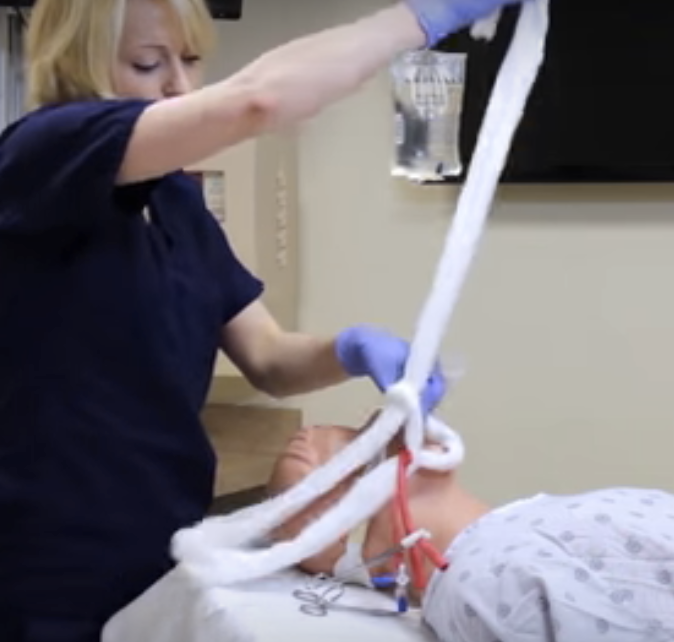

• Secure with rope: slip knot around tube (or any knot).

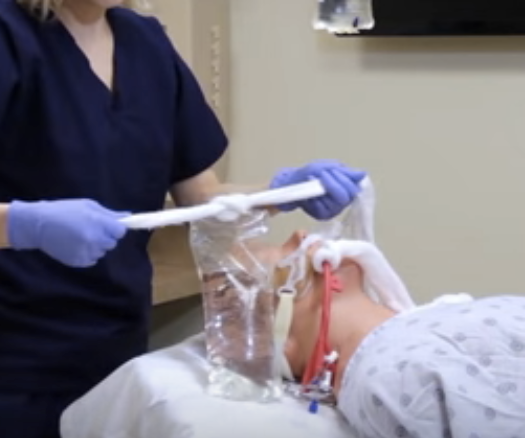

• Square knot through saline bag (or any knot).

• Create pulley system by hanging saline bag over IV pole.

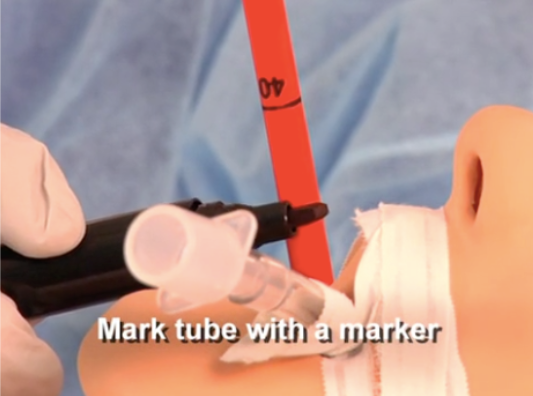

• Mark tube at the lips (to monitor in case of balloon migration).

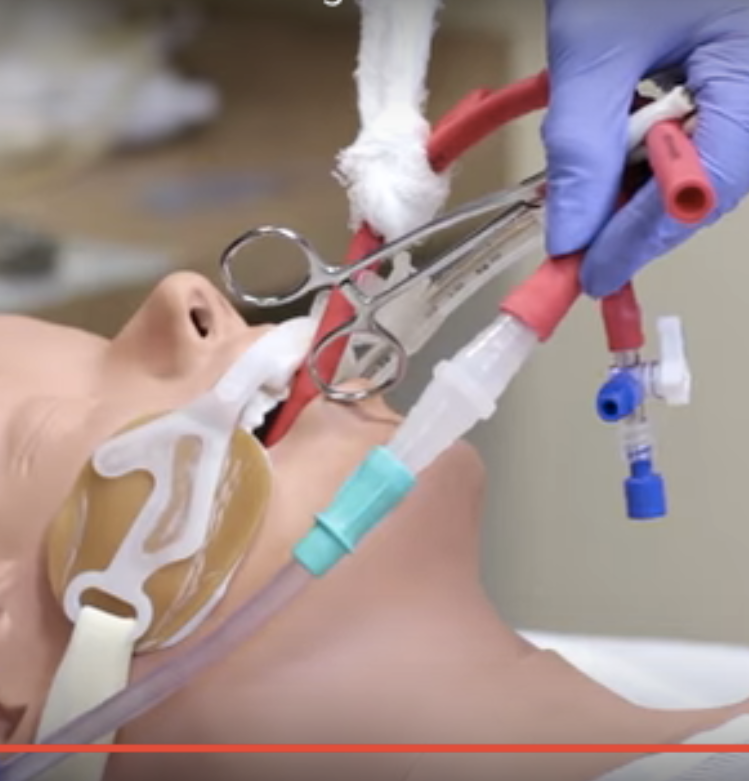

• Connect both aspiration ports to wall suction.


If ongoing bleeding: inflate esophageal balloon. (Note: rupture of esophagus due to over-distention is almost always fatal).

• Inflate in 50-60cc aliquots of air (clamp in between while pulling air in syringe).
• Check pressure with sphygmomanometer in between aliquots.
• Pressure should be between 30-45mmHG.
